Automatic Concrete Boundary Fence Production Line

Product Name	Automatic Concrete Boundary Fence Production Line
Application	Mass production of Concrete Boundary Fence
Type	Fully Automatic
Forming Method	Vibration molding
Discharging Method	Automatic and quantitative Distributing
Production Capacity	9-15m³/h; 80-150m³/day (8-9 hours)
Operators Needed	3-5 workers (including one folklift driver)





Smart AGV-Driven Warehouse Integration

• A lean four-person crew manages entire facility operations (incorporating logistics drivers)
• Automated batching & concrete allocation technology
• Programmable mold-release application system
• High-performance stripping mechanisms
• Automated mold nesting/destacking assemblies
• Intelligent climate-regulated curing zones
• Continuous-rotation inversion technology
• Vacant formwork recovery conveyors
• Vision-guided palletization robotics

Self-regulating bundling systems

• Integrated Circular Operation: Coordinated material flow enables nonstop precision manufacturing
• A modularized prefab manufacturing architecture where subsystems-from aggregate management to steam curing-operate in synchronized cycles
• Through multi-generational system evolution, our engineering prioritizes:
• Operational Excellence: Compressed production phases, amplified output capacity
• System Integrity: Mission-critical operational consistency
• Resource Efficiency: Eco-conscious energy utilization
• Cost-Effective Modernization: Legacy line upgrades to Industry 4.0 benchmarks

Premium-grade components from global manufacturers ensure minimal downtime and extended service life across all operational stages.









The precast concrete barrier rail manufacturing process integrates sequential batching/molding, automated curing, and final stripping/stations. Initial operations comprise the concrete batching system and casting line, followed by stripping and stacking stations. Material handling encompasses formwork circulation systems, mold retrieval conveyors, and pallet base recycling lines. This configuration enables fully automated manufacturing of specialty precast units.









1 Automatic Distribution Area

Closed-loop systems automate material handling and precision dosing. Raw concrete flows directly from transit mixers to mixing hubs via sealed conveyors, eliminating manual steps.





2 Vibration Molding Area

The Combined Modular Mold System receives concrete slurry through automated distribution channels before transferring material to an oscillatory transport belt. Integrated high-intensity vibratory mechanisms beneath the transport surface maintain homogeneous material distribution via continuous oscillation during material transfer.






3 Wet Material Mold Stacking Area

The area combines forklifts guided by AGVs and three-axis gantry robots to automate tray handling.





4 Automatic Steam Curing Area

This automated curing zone combines a multi-stage steam injection chamber with a networked hydraulic distribution system and adaptive climate control units.




5 Automated Output & Destacking Area

This zone integrates two core systems: a gantry robot and an AGV-guided forklift. Once curing is complete, the AGV forklift-operated in tandem with the Warehouse Control System (WCS)-moves five-layer stacks of cured components from the storage area to the destacking zone. The gantry robot then systematically removes and separates individual cured trays from the stacked units for subsequent processing.



6 Vibration Demolding Area

This area features a 180° rotary flip machine integrated with a vibration demolding unit.





7 The Automatic Empty Mold Recirculating Area

This module integrates a conveyor network, particulate removal systems, inversion mechanisms, automated release agent applicators, and emission control units.

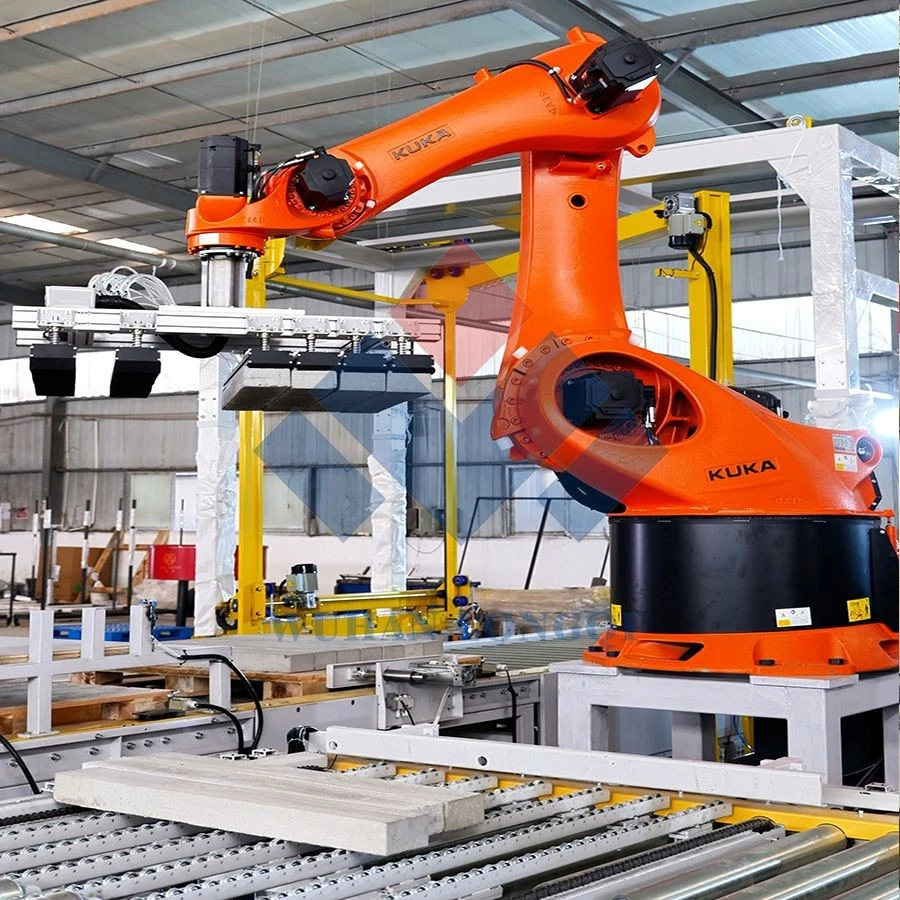

8 Automatic Palletizing Area

This area combines palletizing robots, vacuum gripping systems, and a dual - layer palletizing line.





9 Automated Strapping Area

This system integrates automated strapping modules with programmable pallet conveyors.





Solid/Hollow Hexagonal Revetment Block                               Highway Slope Protection Arch Frame

Concrete Storm Drain Cover                   Concrete Boundary Fence                   Interlocking Paving Block

U-channel Drainage Gutter                          Concrete Grass Paving Bricks                     Curbstone



The Automatic Concrete Boundary Fence Production Line is a cutting-edge system designed for the mass - production of concrete boundary fences. It is widely used in various infrastructure projects such as roads, bridges, urban development, and construction sites. This production line ensures high - efficiency output while maintaining excellent dimensional accuracy and surface finish of the fence components. Its automation capabilities significantly reduce labor costs and improve production speed. The resulting concrete boundary fences are durable, weather-resistant, and designed to provide effective barriers and safety measures in their respective applications.

By changing molds, Temporary Concrete Barrier Rails Production Line can produce hundreds of different types of small precast components. That means with different easy changeable combined modular molds, the production line becomes Revetment Hexapods Production Line, Highway Safety Barrier Production Line, Slope Protection Brick Production Line, Storm Drain Cover Production Line, grass paver Production Line, Automatic U drain Production Line, Interlocking Paving Brick Production Line and etc.





















Our team consists of over 90 professionals, including 60 senior-level technicians who bring extensive expertise to our operations. Leveraging our superior product quality and exceptional service standards, we have established collaborative partnerships with more than 600 clients globally. This has enabled us to successfully execute over 1,100 projects across diverse regions in China and international markets, demonstrating our capability to deliver reliable solutions that meet the unique demands of varied infrastructure and industrial applications.









Longqi Intelligent Certification & Innovation Leadership​​

• Certified Excellence: Attained government-recognized high-tech enterprise status with 55 nationally registered patent technologies.
• Driven Innovation: Our committed R&D division spearheads annual innovation advancements in core technological competencies, sustaining our leadership in cutting-edge industrial advancements through optimized client collaboration and operational synergy.





1. Who we are?	We are a leading provider of integrated solutions for efficient, automated precast component production in the global road and bridge construction sector. Our capabilities include: Design, development, and manufacturing of road and bridge equipment Production machinery and turnkey lines for precast components Semi-automatic concrete precast systems Fully automated guardrail production lines for precast applications Full-service support from installation to commissioning
2. How to get price and catalog?	Please send email (sales@precastconcretemachine.com ) or call us (+86 18086518716) or via Whatsapp/Wechat (+86 18086518716)
3. Our service	1. Investment cost calculation 2. Capacity calculation 3. Factory design 4. Production line layout design 5. on site engineers for installation and guidance
4. Registered Capital	22,000,000CNY
5. Area size of factory	10000 square meters
6. Employee Number	93
7. Patents:	1. An Automated Tilting, Demolding, and Stacking Mechanism for Small Precast Concrete Components 2. Production Mechanisms for Road and Bridge Guardrail Components in Automated Precast Component Production Line 3. Automated Steel Mold Assembly/Disassembly System Until now, we have 55 national patents in Precast Concrete, and our dedicated R&D team delivers annual technological breakthroughs in critical core technologies, keeping us at the industry's innovation forefront.
8. MOQ	1 SET
9. Package	Standard export plywood case or as clients' request
10. Lead time	60~90days
11. Warranty	One year, except spare parts
12. After sales service	Provide permanent technical support



We are a Automatic Concrete Boundary Fence Production Line manufacturer. Our main products include Precast concrete making machine, full-automatic precast concrete production line, semi-automatic precast concrete production line, PC machinery and son on. We provide best service and price for Automatic PC Production Line. If you are planning to build a precast concrete plant, please don't hesitate to contact us.



We are thrilled to introduce our revolutionary Automatic Concrete Boundary Fence Production Line, a game - changer in the realm of precast concrete technology. As pioneers in this field, we specialize in crafting state - of - the - art High - Speed Rail Automatic Concrete Boundary Fence Production Lines, tailored to meet the exacting requirements of contemporary infrastructure projects.

These fully automated production lines integrate cutting - edge technologies, including AI - enabled quality inspection systems and IoT - driven monitoring mechanisms. This integration allows for the seamless and efficient production of Boundary Wall Panels, Concrete Boundary Fences, and Concrete U - Drains with an unprecedented level of accuracy.

Our Boundary Wall Production Line stands out due to its highly adaptable modular mold design. This feature enables rapid design modifications, facilitating the creation of a diverse range of patterns, such as grid and lattice styles, and various sizes, ranging from 50 to 200 centimeters in length, ensuring a perfect fit for different construction needs. Employing hydraulic pressing and vibration compaction techniques, the produced components achieve a compressive strength of at least 25 MPa, making them ideal for high - traffic areas like railway corridors and urban centers.

The Concrete U - Drain Production Line is a remarkable addition to our portfolio, boasting an intelligent water - recycling system. This system significantly reduces waste by 30% while strictly adhering to international standards such as ISO and ASTM. In addition to this, our Automatic U drain Production Line, Highway Safety Barrier Production Line, Temporary Concrete Barrier Rails Production Line, Concrete Temporary Railings Production Line, and grass paver Production Line all guarantee superior - quality output through environmentally friendly and highly efficient manufacturing processes.

Our energy - efficient production lines have an impressive daily output capacity, ranging from 5,000 to 8,000 units. Equipped with Variable Frequency Drive (VFD) motors and utilizing solar - assisted curing methods, they are able to cut down energy costs by 20%. With our commitment to providing round - the - clock global support and comprehensive turnkey installation services, we empower our clients to enhance the resilience of their infrastructure with innovative and cost - effective solutions.
