Highway Cutting Slopes Paving Block Production Line

Product Name	Highway Cutting Slopes Paving Block Production Line
Application	Mass production of Highway Cutting Slopes Paving Block
Type	Fully Automatic
Forming Method	Vibration molding
Discharging Method	Automatic and quantitative Distributing
Production Capacity	9-15m³/h; 80-150m³/day (8-9 hours)
Operators Needed	3-5 workers (including one folklift driver)







Precast Production Line 4.0 Enhanced System
Minimal Staffing: Operates with just 3-5 personnel, achieving daily production of 90-150 m³ (varies by configuration and component types)
Quick Setup: Complete installation within 90 days. Multi-level stacking technology reduces floor space requirements by 75% vs traditional layouts.
Weather-Resistant Precision
Fully enclosed indoor production with AI-controlled curing ensures consistent output quality, unaffected by weather conditions or human inconsistencies.
Authentic Industry 4.0 Automation
Core Automation Capabilities:
Robotic release agent application
Precise concrete distribution
Automated storage systems
Intelligent steam curing
Autonomous inventory management
Continuous-motion flipping mechanisms
Automated demolding processes
Robotic palletizing
Automated strapping operations
Integrated Intelligence Features:
Wireless industrial controls
Big data analytics for predictive maintenance
Real-time anomaly detection alerts







This facility is meticulously partitioned into three distinct zones: primary fabrication, climate-controlled hardening, and post-treatment. Initial zones are equipped with automated mortar metering systems, robotic racking units, formwork circulation tracks, and pallet retrieval conveyors, facilitating autonomous processing of standard-dimensioned components.

Closed-Loop Production Cycle: Moulding: Robotic mortar application with ±1mm precision Curing Transition: Automated transfer to modular curing arrays Inventory Management: Real-time storage via autonomous guided vehicles Dismoulding: Resonance-based formwork separation Positioning & Securing: Vision-synchronized robotic stacking with auto-tensioned strapping Resource Reutilization: Intelligent routing of sterilized formwork back to production

Smart Material Management: Integrated Circulation: synchronized mold-pallet recirculation prevents operational delays Energy-Efficient Curing: Dual-mode thermal regulation chambers with adaptive humidity control Congestion Avoidance: AI-driven path optimization prevents conveyor gridlock.







1 Automatic Distribution Area

Closed-Loop Material Handling System
Automated material circulation ensures precision formulation. Raw concrete transfers directly from transit mixers to batching stations through enclosed conveyance, removing manual intervention.

Longqi's Six-Layer Dispensing Suite
Automated material handling; Gravimetric batching via load cells; Overhead shuttle positioning; In-process rheological monitoring; Zero-friction rotary seals; AI-optimized placement algorithms.

Closed-loop formulation achieves ±1.5% dosing accuracy with slump-adaptive conveyance regulation. AI coordination manages twelve parameters (viscosity, temperature).





2 Vibration Molding Area

The combined modular formwork directs concrete into its vibration-equipped conveyance system. This assembly employs multi-directional oscillation units beneath the transfer surface, delivering continuous vibratory conditioning during material movement to ensure uniform cavity fill. Frequency and amplitude parameters are modulated by an industrial VFD controller, with touchscreen HMI access enabling real-time calibration during production sequences.





3 Wet Material Mold Stacking Area

This sector integrates triaxial overhead manipulators with driverless lift transport to optimize component transfer workflows. The gantry system retrieves green-state molds and configures five-level pallet assemblies, subsequently conveyed via AGV-integrated lift vehicles to climate-controlled curing environments under dynamic WMS-directed routing.





4 Automatic Steam Curing Area

This zone comprises a steam curing chamber, piping network, and temperature - humidity control system. Once fully loaded, the chamber door auto - seals. The system commences steam treatment as per pre - set parameters like time, humidity, and temperature to optimize concrete hardening.



5 Automated Output & Destacking Area

This system coordinates overhead robotic cranes with autonomous transport units to orchestrate processed element logistics. Post-curing, WCS-synchronized AGV forklifts transfer five-tier cured assemblies from climate-regulated storage to the destacking station.



6 Vibration Demolding Area

Precast Component Handling System

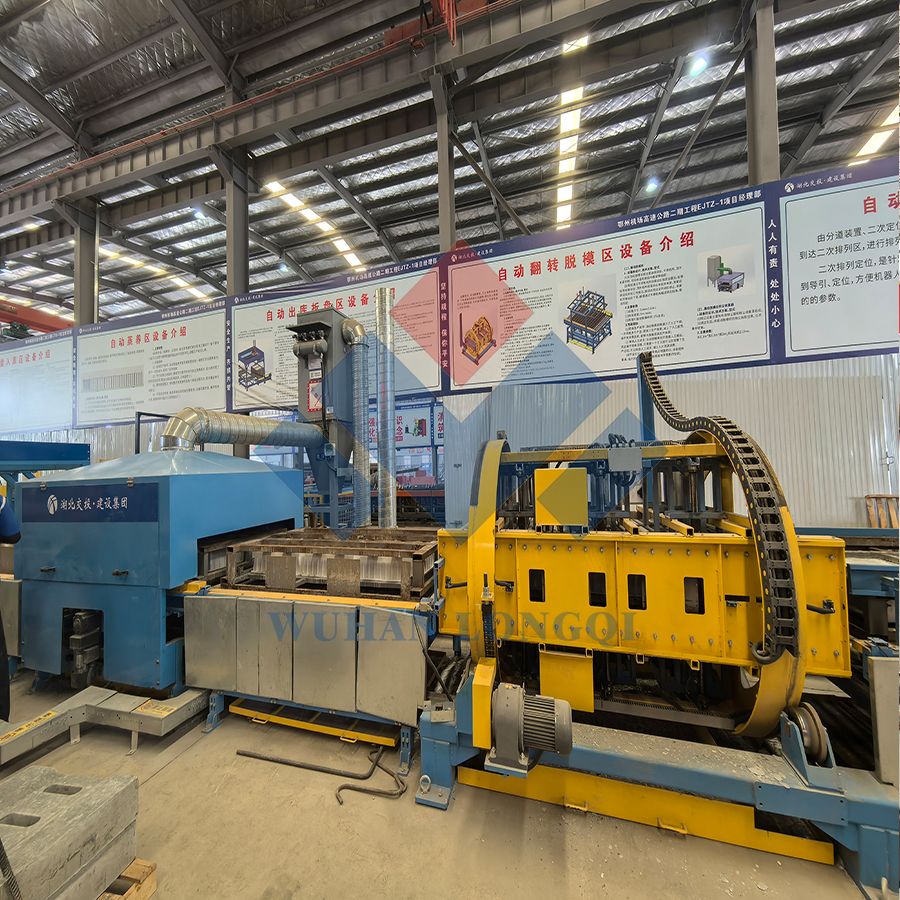

This station integrates a 180° rotational reorientation unit with acoustic formwork separation technology.

Reorientation Sequence
Phase 1: Processed carriers transfer to inversion platform
Phase 2: Photonic positioning verification ensures carrier alignment
Phase 3: Vacuum stabilization clamps secure carrier during servo-driven biaxial 180° reorientation
Phase 4: Realigned units exit via powered transfer system
Continuous Operation: Twin-actuation system eliminates inter-cycle delays, increasing throughput 25% versus single-drive configurations

Element Separation Protocol
Stage 1: Reoriented carriers (mold-face downward) enter resonance separation zone
Stage 2: Sensors activate pneumatic form retention and modulated oscillation (5-100Hz adjustable) for element-form disengagement
Stage 3: HEPA-integrated particulate extraction captures >98% of emissions generated during element release





7 The Automatic Empty Mold Recirculating Area

This sector integrates transfer conveyance, particulate removal systems, servo-actuation inversion mechanisms, automated form-release applicators, and integrated oil aerosol filtration. Gantry robotics transfer depleted formwork to the circulation line where inversion units orient molds vertically. Formwork progresses through particulate-free abrasion cleaning. Post-cleaning, molds advance to automated release agent application stations incorporating integrated oil aerosol filtration for sustainable low-energy operation. Finally, formwork transfers to material distribution stations, establishing a closed-loop cyclical high-efficiency production sequence.







8 Automatic Palletizing Area

This sector integrates robotic stacking manipulators, vacuum handling arrays, and a bi-level palletization system with safety-interlocked protocols between certified access gates and automation equipment. Upon detecting unauthorized portal breaches, the platform initiates immediate full-axis robotic halt, preventing hazardous proximity scenarios. This synchronized solution optimizes stacking precision, reduces manual labor requirements, and ensures OSHA-compliant production safety standards.



9 Automated Strapping Area

This configuration integrates automated banding systems with intelligent pallet conveyance technology. Post-stacking completion, precast units transfer robotically to the binding station for load consolidation. Stabilized pallets advance through sequenced staging prior to warehousing transfer, maintaining uninterrupted production continuity.







Solid/Hollow Hexagonal Revetment Block                               Highway Slope Protection Arch Frame

Concrete Storm Drain Cover                   Concrete Boundary Fence                   Interlocking Paving Block

U-channel Drainage Gutter                          Concrete Grass Paving Bricks                     Curbstone



The Highway Cutting Slopes Paving Block Production Line is a fully automated system specialized in manufacturing precast concrete blocks for slope protection. It's primarily applied in highway engineering, producing durable paving blocks for cutting slopes and embankments along expressways, preventing soil erosion and slope collapse.



Ideal for mountainous highway sections, high-grade road projects, and key transportation infrastructure, it also serves provincial road slope stabilization. The blocks cater to varied slope angles and terrain conditions, ensuring structural safety in harsh environments. This line meets the strict standards of highway construction, supporting efficient, consistent production for large-scale slope protection projects.

















We deliver integrated solutions for efficient automated production of precast components to road and bridge construction clients worldwide. Specializing in the design, R&D, manufacturing, sales, installation, and commissioning of:

Road and bridge equipment

Precast component production machinery & lines

Semi-automatic concrete precast machinery

Fully automated precast guardrail production lines









Longqi Intelligent Precast Concrete Production Equipment and Molds are sustained by a technical team exceeding ninety personnel, including sixty accredited senior engineers. Through superior engineering benchmarks and customer-focused operational frameworks, we've collaborated with 600+ global enterprises, implementing more than 1,100 operational deployments across infrastructure developments in over twenty countries.









We have obtained government high-tech enterprise certification with 55 national patent technologies.To better serve customers and collaborate more efficiently, our dedicated R&D team delivers annual technological breakthroughs in critical core technologies, keeping us at the industry's innovation forefront.







We are a Highway Cutting Slopes Paving Block Production Line manufacturer. Our main products include Precast concrete making machine, full-automatic precast concrete production line, semi-automatic precast concrete production line, PC machinery and son on. We provide best service and price for Automatic PC Production Line. If you are planning to build a precast concrete plant, please don't hesitate to contact us.





As a pioneer in automated concrete solutions, our Highway Cutting Slopes Paving Block Production Line sets new benchmarks for infrastructure efficiency. This robotic platform produces Concrete Interlocking Paving Brick Production Line components, Pre Cast Concrete Block Production Line units, and Grass Paving Stone Production Line systems with millimeter precision for erosion mitigation and slope reinforcement.



Modular Flexibility for Diverse Applications​​
The system's plug-and-play mold configurations enable rapid shifts between Concrete Paving Stones and Paving Stones designs, including interlocking profiles for enhanced load distribution. The Grass Paving Stone Production Line employs permeable eco-molds to integrate vegetation layers, supporting sustainable drainage and soil stabilization.



Smart Automation & Sustainability​​
Integrated smart sensor networks monitor compaction levels and thermal gradients, while machine learning algorithms optimize mix ratios. Automated robotic palletizers achieve 1,500-unit hourly outputs with 40% lower energy consumption versus conventional lines.



Certified Performance & ROI​​
Engineered to ISO-certified compliance frameworks, the line reduces labor inputs by 60% through PLC-controlled workflows and self-cleaning curing modules. Government-approved quality protocols guarantee performance in high-traffic zones, delivering full operational ROI within 2–4 years for highway expansion projects.
