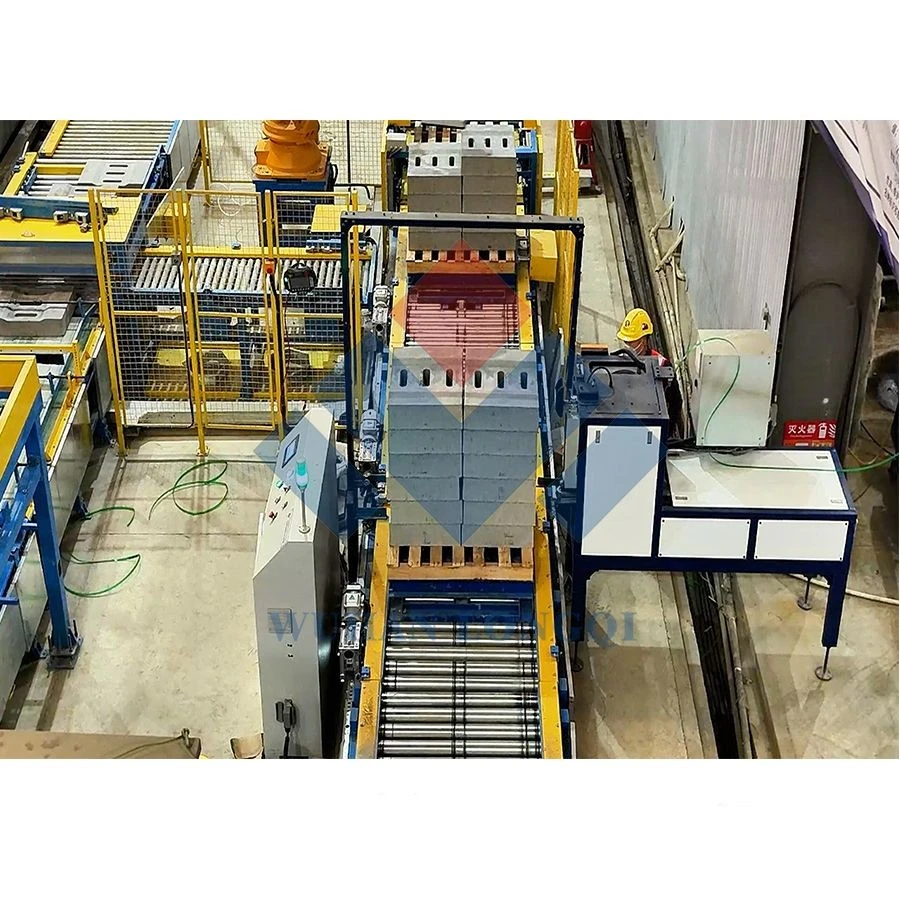

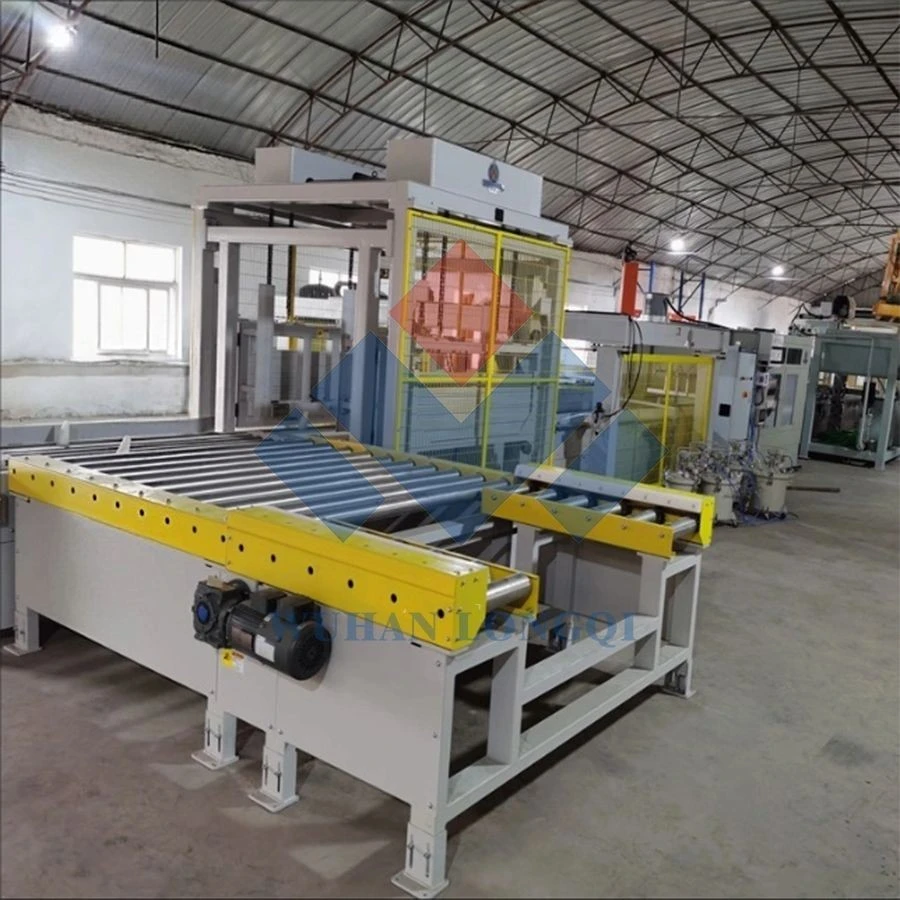

Fully-Automatic Precast Concrete Elements Production Line

Product Name	Fully-Automatic Precast Concrete Elements Production Line
Application	Mass production of small and medium-sized precast concrete components
Type	Fully Automatic
Forming Method	Vibration molding
Discharging Method	Automatic and quantitative Distributing
Production Capacity	9-15m³/h; 80-150m³/day (8-9 hours)
Operators Needed	3-5 workers (including one folklift driver)
Our service	1. Investment cost calculation 2. Capacity calculation 3. Factory design 4. Production line layout design 5. on site engineers for installation and guidance



AGV-Enabled Automated Warehouse Integration System
Tailored for reduced personnel needs with merely four operators overseeing full-site operations, this fully integrated solution incorporates autonomous guided vehicle logistics.



Sophisticated Material Handling & Dispensing
Auto-batching and concrete distribution modules guarantee precise material management, while robotic release agent application systems boost surface preparation efficiency.



Smart Cycle Enhancement
Rapid demolding devices paired with automated mold stacking/unstacking units maximize equipment utilization rates. Integrated temperature-controlled curing enclosures sustain optimal hardening conditions via intelligent environmental regulation.



Uninterrupted Production Flow
Rotary inversion systems enable non-stop cycle progression, supported by automated empty mold recovery conveyors and AI-powered palletizing robotics executing accurate load configurations.



Integrated Circular Production Ecosystem
Full-process interconnection between material feeding, curing, and packaging subsystems eliminates operational bottlenecks. Modular design allows seamless linking of all components-from raw material intake to finished product delivery.



Decades of Evolution
Our constantly upgraded systems focus on:



Productivity Boosts: Accelerated production cycles with industry-leading output metrics
Operational Stability: 99.8% equipment availability standards
Energy Efficiency: Resource-saving processes cutting power consumption by 22%
Cost Flexibility: Retrofit solutions for modernizing legacy lines



Verified Industrial Dependability
All hardware adopts industry-validated domestic and global brands, featuring prolonged maintenance intervals and exceptional durability. This engineered redundancy ensures consistent performance in heavy-duty infrastructure applications.









Smart Fully-Automatic Precast Concrete Elements Production Line

This integrated production system operates through three synchronized zones: upstream material processing, controlled-environment curing, and downstream demolding/packaging. The initial module incorporates:

Robotic batching and molding stations

Automated demolding cells

Pallet circulation conveyors

Mold recirculation tracks

Pallet retrieval systems
enabling unmanned production of compact precast units.

Continuous Manufacturing Workflow:

Automated casting and compaction

Robotic transfer to curing storage grids

AGV-managed warehousing

Resonance-assisted demolding

Vision-guided component stacking

Auto-tensioned bundling

Sanitized mold reintegration







1 Automatic Distribution Area





2 Vibration Molding Area







3 Wet Material Mold Stacking Area







4 Automatic Steam Curing Area





5 Automated Output & Destacking Area





6 Vibration Demolding Area







7 The Automatic Empty Mold Recirculating Area









8 Automatic Palletizing Area







9 Automated Strapping Area







Solid/Hollow Hexagonal Revetment Block                               Highway Slope Protection Arch Frame

Concrete Storm Drain Cover                   Concrete Boundary Fence                   Interlocking Paving Block

U-channel Drainage Gutter                          Concrete Grass Paving Bricks                     Curbstone



Longqi Fully-Automatic Precast Concrete Production Line delivers unmanned manufacturing from raw material processing to finished palletizing. Engineered for four-person plant operation, it achieves 85% labor reduction while ensuring ISO 12100-compliant safety through hazard containment engineering. High-frequency vibration compaction enables 50+ MPa structural strength and formwork-grade surface finishes. Integrated process control maintains EN 1338-compliant dimensional stability (±0.5mm) and <1% void ratios across all outputs. This turnkey solution guarantees consistent production of road barriers, utility components, and architectural elements with millimetric precision, eliminating quality variances through closed-loop automation and real-time monitoring systems.

















• Technical Leadership Since 2007
  Specializing in precast system innovation, we integrate advanced engineering with manufacturing precision. Our certified engineering cohort (90+ specialists including 60 principal engineers) drives proprietary R&D validated by 55 national patents, developed through academic alliances and electromechanical design partnerships.

• Industry Transformation
  Pioneered China's first compact precast line (2017), subsequently establishing the national automation benchmark at Guanyue Road & Bridge (2020) with closed-loop intelligent production technology.

• Global Infrastructure Impact
  1,100+ multinational deployments across five continents serve critical markets: Africa, Europe, South America, MENA, and ASEAN regions. Our equipment advances transportation networks, hydraulic engineering, and urban development projects under demanding FIDIC contract conditions.







Our workforce includes over 90 professionals, with 60 holding senior technical certifications. Leveraging engineering excellence and client-centric solutions, we have partnered with 600+ enterprises globally and delivered 1,100+ precast installations across domestic and international markets.









Recognized as a government-certified high-tech enterprise with 55 patented innovations, we prioritize cutting-edge advancements. Our dedicated R&D department achieves yearly breakthroughs in pivotal technologies, ensuring sustained leadership in industrial innovation while enhancing collaborative efficiency for client-focused solutions.









We are a Fully-Automatic Precast Concrete Elements Production Line manufacturer. Our main products include Precast concrete making machine, full-automatic precast concrete production line, semi-automatic precast concrete production line, PC machinery and son on. We provide best service and price for Automatic PC Production Line. If you are planning to build a precast concrete plant, please don't hesitate to contact us.





We are a top - notch producer of cutting - edge construction - related solutions. Our expertise lies in supplying Fully - Automatic Precast Concrete Elements Production Lines that are both efficient and accurate. The Automatic PC Production Line merges advanced technology to optimize the making of top - notch precast components, guaranteeing uniformity and lessening labor expenses. Our Precast Concrete Production Line includes automated mold - forming, hardening, and mold - removing systems. It can quickly turn out products for residential, commercial, and infrastructure undertingsak. We are committed to innovation. Our Automatic Precast Production Line ensures the best use of resources and the least waste possible. Rely on our proficiency in Concrete Elements Production Lines to boost your operations with dependable, flexible, and industry - compliant solutions. Reach out to us and upgrade your precast manufacturing capacities right away.
