Automatic Concrete Interlocking Paving Block Production Line

Product Name	Automatic Concrete Interlocking Paving Block Production Line
Application	Mass production of Concrete Interlocking Paving Block
Type	Fully Automatic
Forming Method	Vibration molding
Discharging Method	Automatic and quantitative Distributing
Production Capacity	9-15m³/h; 80-150m³/day (8-9 hours)
Operators Needed	3-5 workers (including one folklift driver)





Longqi's Automatic Concrete Interlocking Paving Block Production Line delivers optimized operational efficiency featuring integrated AGV warehousing. Remarkably, total site management requires only four personnel, inclusive of forklift duties.



The configuration incorporates an automated batching and distribution system ensuring precise material metering. It further includes programmable release agent application, a rapid-stripping system for swift component extraction, and an automated mold stacking/destacking unit for efficient die management. Intelligent thermo-regulated curing chambers guarantee optimal hardening, complemented by a continuous-transfer inversion mechanism for seamless handling. An automated empty mold return conveyor sustains workflow continuity, alongside an AI-integrated robotic palletizer for systematic product arrangement. Process completion is achieved via an autonomous banding system securing final units.



This uninterrupted closed-cycle operation facilitates comprehensive system integration, maintaining consistent, high-yield output. Our production sequence employs a fully modular architecture, with all phases-from raw material processing through curing-operating in synchronized coordination.



Through decades of iterative refinement, our solution prioritizes core objectives: enhancing Efficiency via accelerated cycles and elevated throughput; ensuring Reliability through exceptional operational availability; advancing Sustainability via energy-conserving processes; and enabling Cost Control through modernization of legacy lines to current standards. All subsystems utilize renowned OEM components from domestic and global suppliers, ensuring extended service life and minimal downtime.





Advanced Precast Production System 4.0
Engineered for streamlined manufacturing, this enhanced configuration delivers 90-150 m³ daily capacity with 3-5 personnel, accommodating diverse product parameters. Core innovations encompass:

Rapid Deployment
• Turnkey installation within 12 weeks
• Vertical integration solutions reducing plant area requirements by 70-80% versus traditional systems

Weather-Resilient Operations
Enclosed intelligent facilities employ AI-driven thermal management to neutralize climate variability and operational errors, maintaining ±2% dimensional accuracy batch-to-batch.

Industrial IoT Integration
Robotic Manufacturing Core
• Auto-calibrating form-release systems
• Programmable mortar dispensing units
• Continuous-rotation mold inversion assemblies
• Computer-vision depalletizing robotics
• Adaptive steam-curing chambers

Centralized Cognitive Control
• 5G-enabled facility-wide diagnostics
• Predictive maintenance analytics
• Real-time fault intervention protocols

Workspace Optimization
Reconfigurable production cells enabling single-plane material transit
85% manual handling reduction via servo-actuated transfer systems
Safety-engineered interlocks and contactless operation enhancing personnel protection

Proprietary Engineering
• 50+ patented automation hardware technologies
• High-cycle fatigue alloys with 25-year structural guarantees
• Modular formwork producing 100+ certified elements:
Landform stabilization hexablocks
Roadway containment & utility channel systems
Permeable surfacing units
Hydraulic flow conduits

This platform transforms precast economics through intelligent automation, realizing 18-month ROI via energy-efficient cycles and 97% material yield. Independent verification confirms 40% reduced carbon emissions versus industry standards.

















1 Automatic Distribution Area

Automated concrete delivery systems consist of two primary elements: agitation trucks and dispensing units. Material undergoes direct discharge from transit mixers into the dispenser's receiving vessel, minimizing intermediate handling for maximized operational efficiency.

Longqi's proprietary digital batching unit integrates mold conveyance, aggregate hopper, blending module, rotary seal mechanism, precision gravimetric discharge system, and integrated control architecture. This unified configuration performs real-time volumetric calibration during mold filling operations, guaranteeing dimensional accuracy and production uniformity.





2 Vibration Molding Area

Integrated Modular Formwork Assembly receives material from the distribution unit and advances it via an oscillating transfer conveyor. The under-deck high-frequency vibration mechanism ensures homogeneous mold filling through transit-phase consolidation. VFD-regulated vibration parameters permit real-time optimization through the centralized control interface for precise compaction results.





3 Wet Material Mold Stacking Area

This sector integrates AGV-navigated forklifts with triaxial gantry robotic manipulators for autonomous pallet transfer. The robotic systems extract green-state molds and assemble five-tier stacks. Subsequently, AGV-directed forklift units convey these assemblies to the thermal curing bay under WMS direction.





4 Automatic Steam Curing Area

This module combines a thermal regulation chamber, vapor distribution infrastructure, and adaptive climate-regulation mechanisms. Upon batch loading, automated sealing protocols engage via magnetic gaskets. The system executes programmed curing cycles through preconfigured parameters-thermal thresholds (40-80°C), humidity gradients (75-95% RH), and phase durations-to accelerate concrete hydration.



5 Automated Output & Destacking Area

This sector employs a dual-mechanism framework featuring robotic bridge cranes and driverless forklift fleets. Upon curing cycle conclusion, WCS-coordinated AGVs relocate five-high palletized units from thermo-regulated storage to the destacking station. The gantry system then executes sequential layer separation using calibrated end effectors to isolate individual product carriers from vertical arrays, maintaining ±1mm placement tolerance.



6 Vibration Demolding Area



This station incorporates a 180° servo-driven inversion unit and an oscillation-assisted mold separation system.

Flip Device Operations
Post-cured carriers transfer to the rotational unit.
Infrared positioning verification ensures carrier alignment.
Pneumatic securing actuators immobilize the carrier during servo-driven 180° inversion.
Inverted units discharge via powered roller conveyance.
Dual-drive architecture enables continuous cycling without reset delays, yielding 25% throughput improvement.

Demolding Operations
Inverted carriers (casting-surface down) enter the vibration separation station.
Sensors trigger pneumatic immobilization and VFD-modulated oscillation (5–100Hz adjustable range) for mold-component release.
Integrated dust suppression captures and filters 98% of particulate emissions generated during separation.







7 The Automatic Empty Mold Recirculating Area

This integrated cell combines modular transfer conveyance, particulate removal systems, servo-actuated inversion units, and ecological form-release applicators with embedded oil aerosol filtration.

Closed-Loop Sequence
Gantry robots transfer depleted formwork to the circulation line, where biaxial inversion mechanisms orient units vertically.
Molds progress through a pneumatic cleaning tunnel achieving 98% particulate retention.
Programmable spray booms deposit anti-adhesion coatings via piezoelectric nozzles, coordinated with HEPA-filtered vapor recovery.
Processed formwork returns to material staging via optimized roller transit, sustaining continuous production flow.

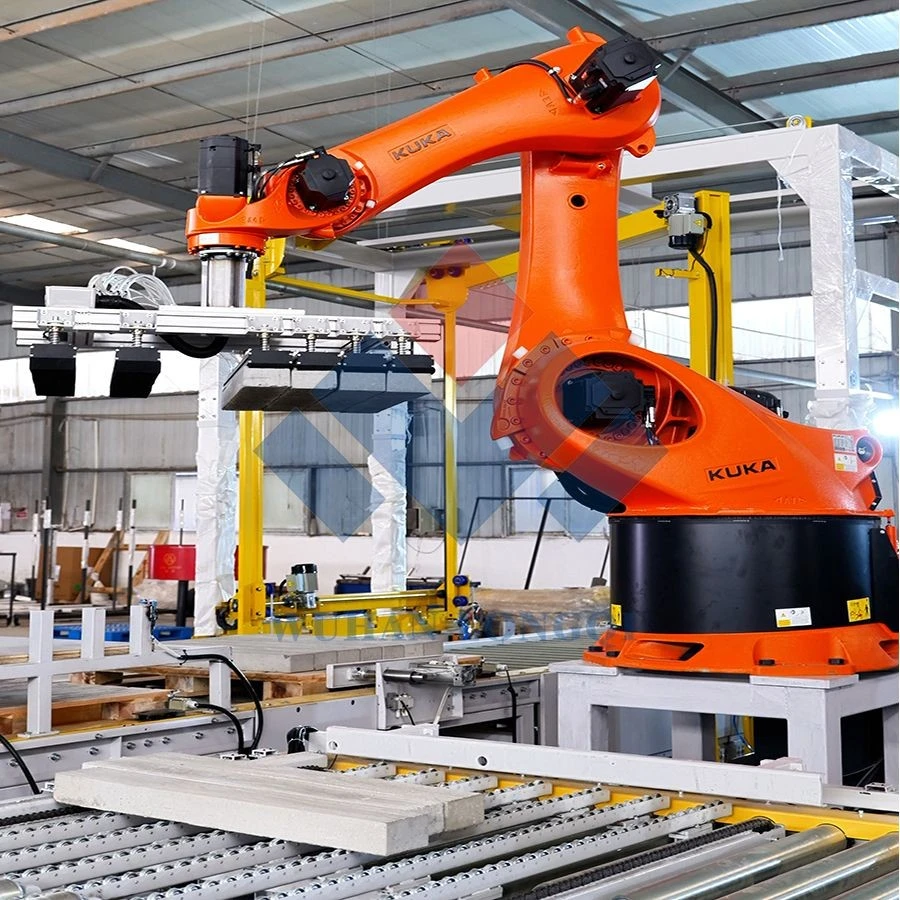

8 Automatic Palletizing Area



This system integrates robotic stacking manipulators, vacuum transfer arrays, and dual-tier palletization architecture, implementing safety-interlocked protocols between perimeter guarding and automation equipment. When detecting unauthorized intrusion via certified access points, the platform activates full-axis emergency shutdowns across all robotic systems, preventing hazardous proximity scenarios. The synchronized solution ensures dimensional stacking consistency, reduces manual labor requirements, and complies with operational safety regulations.





9 Automated Strapping Area

This integrated solution seamlessly combines automatic strapping machines with pallet transfer systems. Once palletization is complete, precast block stacks are automatically conveyed to the strapping station for secure bundling. The strapped pallets then advance to a queuing area for storage logistics, ensuring an uninterrupted production workflow.





Solid/Hollow Hexagonal Revetment Block                               Highway Slope Protection Arch Frame

Concrete Storm Drain Cover                   Concrete Boundary Fence                   Interlocking Paving Block

U-channel Drainage Gutter                          Concrete Grass Paving Bricks                     Curbstone



Concrete Interlocking Revetment Block Production Line is widely used in civil engineering projects including high-speed railways, highways, municipal roads, river slope protection, bridge guardrails, airports, and sea ports.


















• Our organization possesses 15+ years of specialized expertise in precast equipment R&D and fabrication.

• With over 90 personnel including 60 qualified senior technical staff, our innovation division collaborates with distinguished professors and elite electromechanical design teams from leading academic institutions, having secured 55 national patents.

• In 2017, we pioneered China's inaugural compact precast production system.

• In 2020, we implemented a closed-loop intelligent compact component production line at Guanyue Road & Bridge, establishing China's benchmark in automated precast manufacturing.

• We've successfully executed 1,100+ global installations. Our precast production systems have been exported across Africa, Europe, South America, the Middle East, and Southeast Asia, contributing to international infrastructure advancement.









Our company has a staff of over 90, 60 of whom are senior - level technicians. Backed by top - notch product quality and superior service, we've established partnerships with over 600 clients and achieved a track record of over 1,100 successful projects across China and globally.







Boasting 55 national patents and government - recognized high - tech enterprise status, our firm stays ahead in innovation. Our devoted R & D team consistently makes annual breakthroughs in key core tech, enhancing our customer service and collaboration efficiency.









We are a Automatic Concrete Interlocking Paving Block Production Line manufacturer. Our main products include Precast concrete making machine, full-automatic precast concrete production line, semi-automatic precast concrete production line, PC machinery and son on. We provide best service and price for Automatic PC Production Line. If you are planning to build a precast concrete plant, please don't hesitate to contact us.





Introducing our state-of-the-art Automatic Concrete Interlocking Paving Block Production Line, a testament to precision engineering and technological advancement in modern construction. This fully automated system harnesses AI-driven controls, robotic precision, and IoT monitoring to streamline production-from raw material mixing to quality assurance and palletizing-delivering high-strength interlocking paving blocks at scale. Designed for versatility, it produces blocks in diverse shapes, sizes, and textures, ideal for roads, walkways, and commercial landscapes, while ensuring consistent compressive strength for long-lasting durability.

Central to our offering is the Concrete Interlocking Revetment Block Production Line, which excels in creating robust solutions for erosion control and waterfront stabilization. Its advanced hydraulic compaction and vibration technology form blocks with intricate interlocking geometries, enhancing slope stability and resisting water flow forces. These revetment blocks not only meet strict engineering standards but also reduce installation time by 30% compared to traditional methods, thanks to their self-locking design that minimizes manual alignment.

Complementing this, our Precast Concrete Interlocking Paving Brick Production Line offers unmatched customization, allowing architects and contractors to choose from modular molds for unique patterns, colors, and finishes. Whether for decorative plazas or heavy-duty industrial zones, these bricks blend aesthetic appeal with functional resilience, supported by a rapid-curing system that boosts daily output to 5,000–8,000 units.
